VB Oil & Gas Energy: Operational reliability engineering. Request evaluation

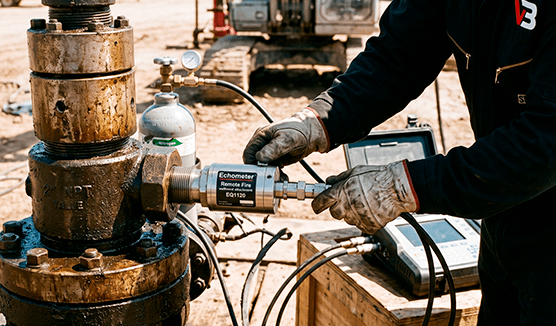

We diagnose wells in the field with an Echometer Model E analyzer. We measure annular fluid level, rod loads and wellhead pressure transients.
We use that data to set gas lift or beam pumping: less guesswork, fewer shutdowns from rod or downhole-pump failures.

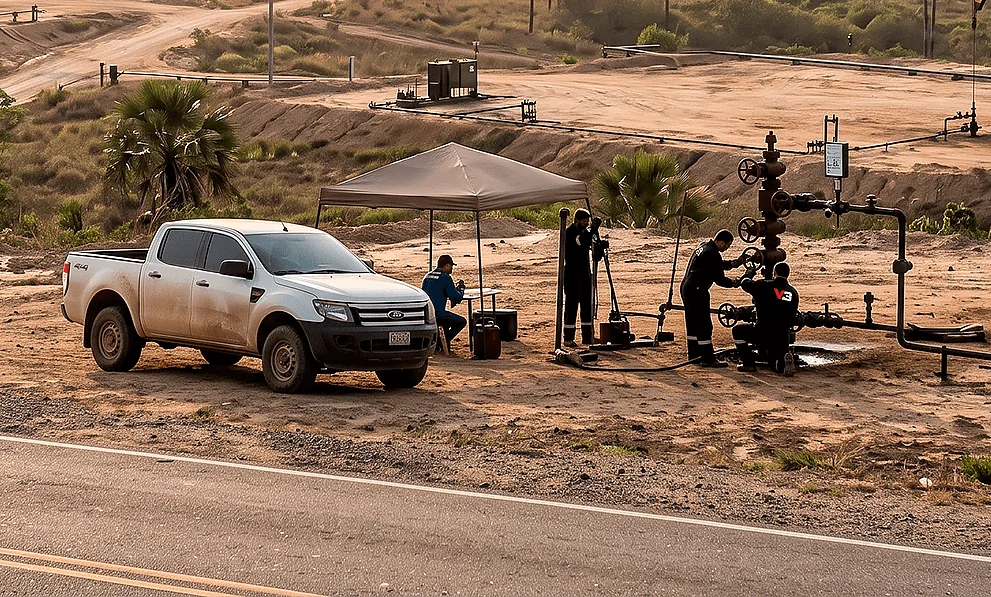

Echometer TWM/TAM · Orinoco Belt · Northern Monagas

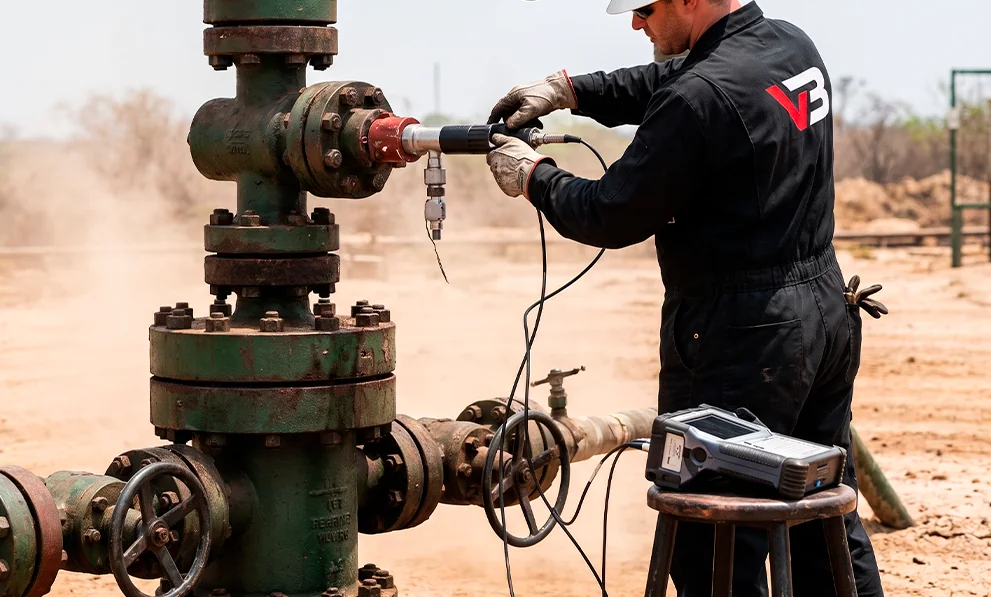

Acoustic Single Shot / TWM shot from surface to liquid. With that distance and wellhead pressure we calculate flowing bottomhole pressure and the real artificial-lift margin.
30 KLB horseshoe cell and polished-rod transducer (PrT). Load, surface card and unit horsepower. Finds downhole-pump mechanical failure without pulling blind.

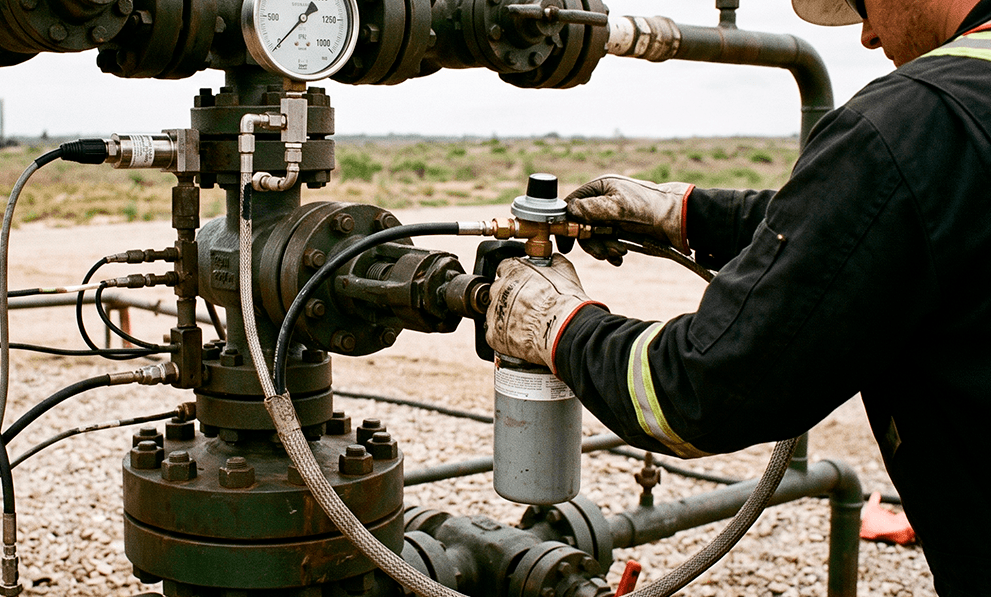

Remote-fire wellhead and 1500 PSI transducer for transients, wellhead pressure tests and gas-lift valve tightness. The shot is remote. Working limit 1500 PSI. Above that, another wellhead.
Periodic diagnostics on heavy and extra-heavy crude. Deliverable is rate, lift cost and fewer premature failures. Not a chart for the file.
Model E analyzer, 1500 PSI remote-fire wellhead and PrT / 30 KLB horseshoe cells. Field service; we also quote rental and sale of the kit.

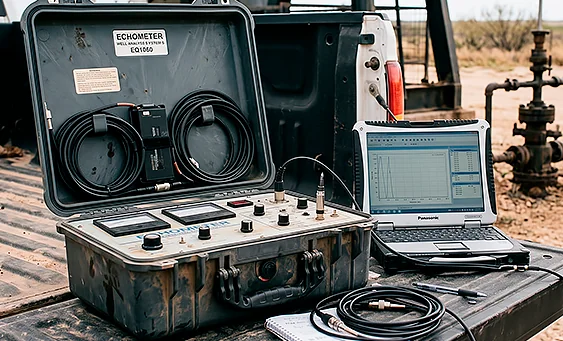

Model E with TAM/TWM laptop. Fluid level, dynamometer and pressure transient. The report comes out on site.

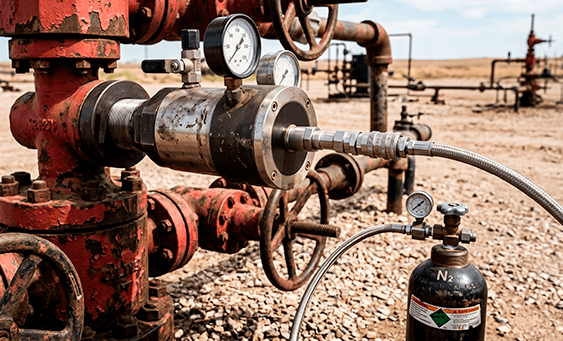

Wellhead gas shot, explosion mode, 1500 PSI, 2" NPT. Automatic transients.

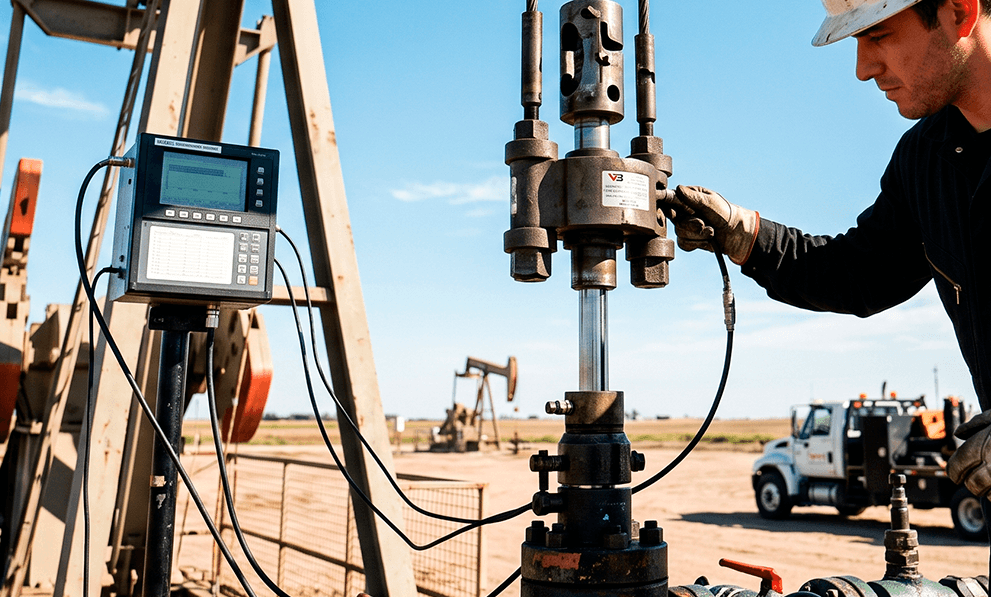

Polished-rod and beam load for the surface card and unit horsepower.
